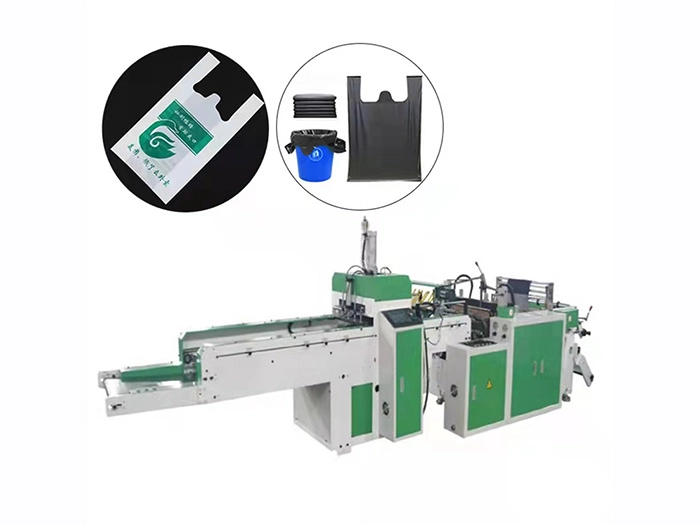

La máquina para la producción de películas plásticas de polietileno de alta densidad (HDPE) y polietileno de baja densidad para bolsas de compras (bolsas tipo camiseta).
Se utiliza para producir bolsas tipo chaleco con estampado. El motor principal adopta un motor de conversión de frecuencia para ahorrar más electricidad y regular la velocidad más libremente. El rastreador de código de color con buen rendimiento hace que la longitud de sellado y corte sea más precisa y el error sea menor. Adopta una computadora avanzada para ajustar la longitud con mayor libertad y precisión.
Technical parameter:
|
Model |
YF-HS800 |
|
Width of bag-making |
200-700mm |
|
Length of bag-making |
350-800mm |
|
Speed of bag-making |
220-280pcs/min |
|
Thickness of bag-making |
0.01-0.05mm |
|
Air compressor |
10HP |
|
Power of motor |
9.0kw |
|
Weight |
2500kgs |
|
Outline dimension(L×W×H) |
7000×1800×1800mm |
|
Main parts |
|
|
Main machine frame |
Iron plate(16mm) |
|
Punching Frame |
Iron plate (16mm) |
|
Material-feeding control system |
Feeding control by Analog |
|
Cutting knife heating method |
Electric heating |
|
Semifinished material discharging mode |
Swaying discharging |
|
Material-feeding mode |
Pneumatic tension control |
|
Triple-phase asynchronous motor |
Shanghai brake motor 1.50kw×1pc |
|
AC motor for feeding |
Fenghua 0.75kw |
|
Servo motor |
Japan Yaskawa motor 3Kw |
|
Computer controller |
WuxiXuncheng 1pc |
|
Computer for punching unit |
Wuxi Xinjie touch screen×1pc |
|
Main motor for punching unit |
Shanghai Ruicheng Brake motor 1.50kw×1pc |
|
Hall switch |
Taiwan Fotek×16pcs |
|
Bearing |
NSK Brand Janpan or Renben China |
|
Inverter for bag-making machine |
Yantai Ourui 3pcs |
|
Air-blowing solenoid valve |
Imported 2pcs |
|
Heat needle solenoid valve |
Taiwan Jinqi 1pc |
|
Solid-state regulator |
Taiwan Fotek 1pcs |
|
Temperature controller |
Taiwan Fotek 2pcs |
|
Solenoid Valve for punching Machine |
Taiwan Jinqi 9pcs |
|
Air pressure-cylinder |
Taiwan Jiuli 3T |
|
Button switch |
Zhejiang Chint 6pcs |
|
Circuit breaker |
Zhejiang Chint 2pcs |
|
Heating pipe |
Imported 1500w×2pcs |
|
Heating cutting knife blade |
Imported1pcs |
|
Material-feeding photocell |
Panasonic1pcs |
|
Tracking photocell |
Panasonic1pcs |
|
Photocell for auto stop if without material |
Panasonic1pcs |
|
Putty photocell |
Panasonic4pcs |
|
Self-oil feeder |
Yes |
|
Constant-tension inverter for feeding |
|
|
Inverter for punching machine |
Shenzhen Yiqu 1pc |
|
Spare parts |
|
|
Silicone gel strip |
2M |
|
Electric-heating tube(used for Copper knife) |
2pcs |
|
Electric-heating tube(used for Heat needle) |
2pcs |
|
Electric-heating plate(use forblade adapter) |
2pcs |
|
Temperature controller |
2pcs |
|
Thermocouple |
1pc |
|
High-Temperature Cloth |
2rolls |
|
Electric Adhesive tape |
2rolls |
|
Cutting knife blade |
2pcs |
|
Rubber plate for punching |
2pcs |
|
Manipulator rubber head |
8pcs |
|
Hall switch |
2pcs |
|
Tool box |
1set |
|
Imported positioner |
2pcs |
|
Proximity switch(Fotek) |
2pcs |
