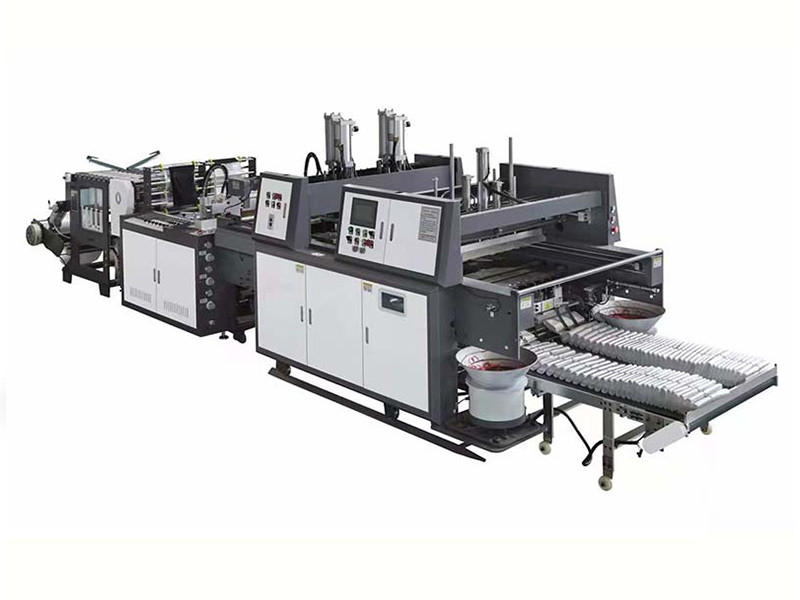

500*2 Fully Automatic Super High Speed Hot-sealing and Hot-cutting Bag Making Machine

Product Application:

Technical parameters:

Model                                        500*2

Max. Length of bag making                    280-650mm×2

Max. Width of bag making                     180-450mm×2

Max. Speed of bag making                     100-450pcs/min×2

Thickness range of single face                  0.01-0.05mm

Total power                                  16kw



Weight of machine                          2400kg

Overall dimension                           6000×1700×1800mm

Air pressure                                10HP



Main configurations of machine:

Items                                    Origin/Brand

Mainframe of machine                       Thick steel plate

Material feeding system                     Modulating control system

Heating way of cutting knife                  Electric heating

Mainframe of punching machine              Thick steel plate

Unwinding way                            Dancing roll

Loading way                       Pneumatic cylinder (Independent frame)

Unwinding brake                  Pneumatic brake/Magnetic powder brake

Main motor                              Dedong, Shanghai/2.2KW

Unwinding motor                          Dedong, Shanghai/0.55KW

Servo motor                               Huichuan, China/3.0KW

Computer controller                         Xuncheng/Wuxi city

Hall switch                                SDD, Shanghai



Computer of punching machine               Touch screen

Main motor of punching machine              Driving controller



Bearing                                    NSK/Japan or Renben/China

Inverter of main motor                        EURA

Inverter of unwinding                         EURA

Solid state voltage regulator                  FOTEK/Taiwan

Magnetic valve for cooling                    SMC/Japan

Magnetic valve of punching machine           Mindman/Taiwan

Temperature controller                       YATAI/Shanghai

Button switch etc.                            Schneider

Pressure cylinder                            3 Tons/ July Taiwan

Breaker                                   CHINT/Zhejiang

Photocell for unwinding                      Panasonic

Photocell for tracking                        Panasonic

Heating tube                                Imported/2000w

Hot-cutting knife                            Songyue

Photocell for material plugging                 Omron

Photocell for material lacking                 Panasonic

Blower                                     Shenzhen city
