150 Plastic PP PE Film Washing Line Mixing Granulator Machine

Product Application:

This machine applies Japanese advanced technology, uses the principles of multi knife rapid crushing, continuous mixing, mixing friction heating, rapid cooling and shrinkage, and puts the particles caused by plastic film, wire, belt, sheet, soft plastic pipe, foaming material, degradable material and other waste and corner materials into reproduction. It is the latest ideal granulation equipment for plastic recycling and regeneration.

Main functions:


1. The waste materials and leftovers of various soft plastic films, bags, wires, tapes, sheets and pipes such as polyvinyl chloride, polypropylene, low-density polyethylene, high-density polyethylene and linear low-density polyethylene are recycled and put into production.

2. Recycling and reproduction of degradable plastic film and corner material crushing and granulation.

3. The chemical fiber materials (polyester, acrylic, polypropylene, etc.) are crushed, granulated and put into the waste silk treatment of reproduction.

4. One machine has multiple functions. It can replace mixer or dryer.

Main features:

A: Crushing, mixing and coloring can be carried out at one time

B: The machine covers a small area

C: Simple mechanical structure and convenient operation

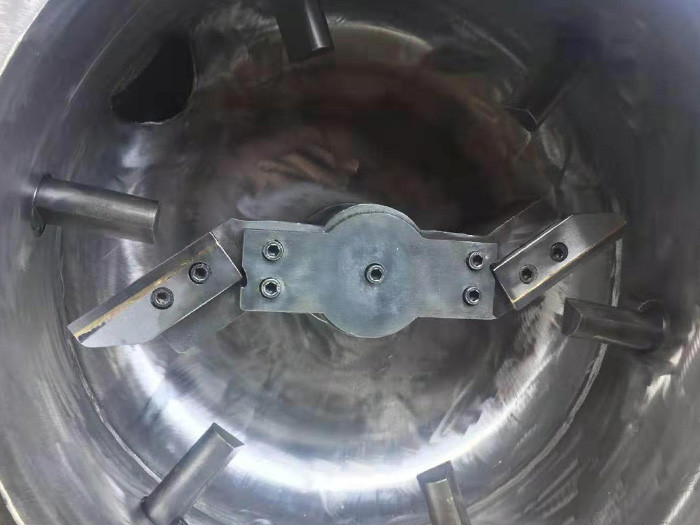

D: The blade clearance is adjustable and it is convenient to change the blade

E: High production efficiency and low energy consumption (daily output of 1 ton and power consumption of 200 degrees).

F: Low temperature granulation basically does not damage the molecular structure of raw materials and physical properties.



Main technical parameters:

Machine barrel capacity

150L

Production capacity

 60-80kg / h

 Main motor power:

18.5kw

Water adding device

125w

Heating power

1.5kw

 Spindle speed

660r / min

Machine overall dimension

1500×700×1400mm

Features: Good plasticization, stable quality, low power consumption, convenient operation, good exhaust effect, no bubbles, high filling under the premise of ensuring plasticization. It is an ideal equipment for granulation plant
