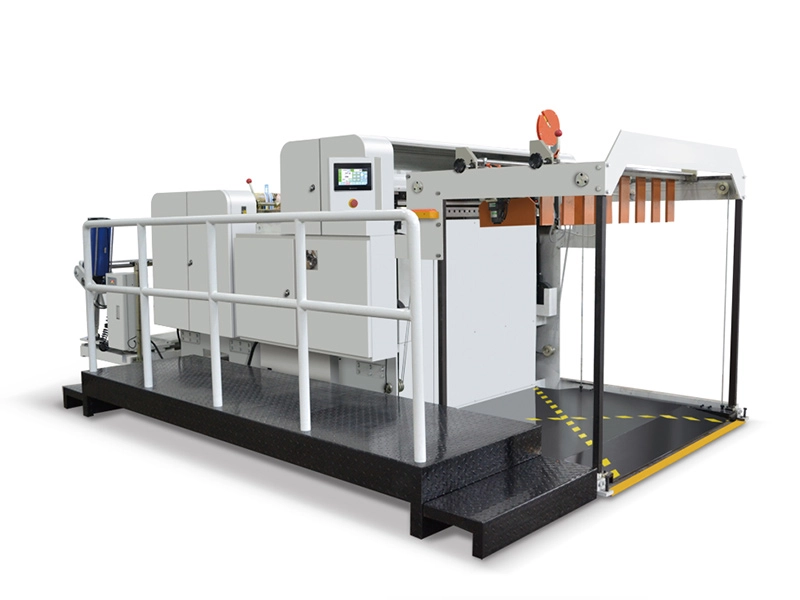

Automatic Timming Intelligent Crosscutting Machine

Product Application:

We adopt servo motor to control the length of cutting, This machine has electric and pneumatic control system, easy operating, high precision in cutting, working stable, low-noise. Frequencyconvertercontrol motor speed with stable running, automatic counting, alarm and automatic-stop,Full automatictension control. Web edge position automatic correct control by EPC system. Waste edge is blowing by fan automatically.

Usage: This machine is suitable to cut the jumbo roll material to sheets. GSM range:40-450.Material:paper,coated paper,adhesive sticker paper,paper&film laminated,plastic film,PVC and so on.

Performance And Characteristics:

We adopt servo motor to control the length of cutting, This machine has electric and pneumatic control system, easy operating, high precision in cutting, working stable, low-noise. Frequencyconvertercontrol motor speed with stable running, automatic counting, alarm and automatic-stop,Full automatictension control. Web edge position automatic correct control by EPC system. Waste edge is blowing by fan automatically.

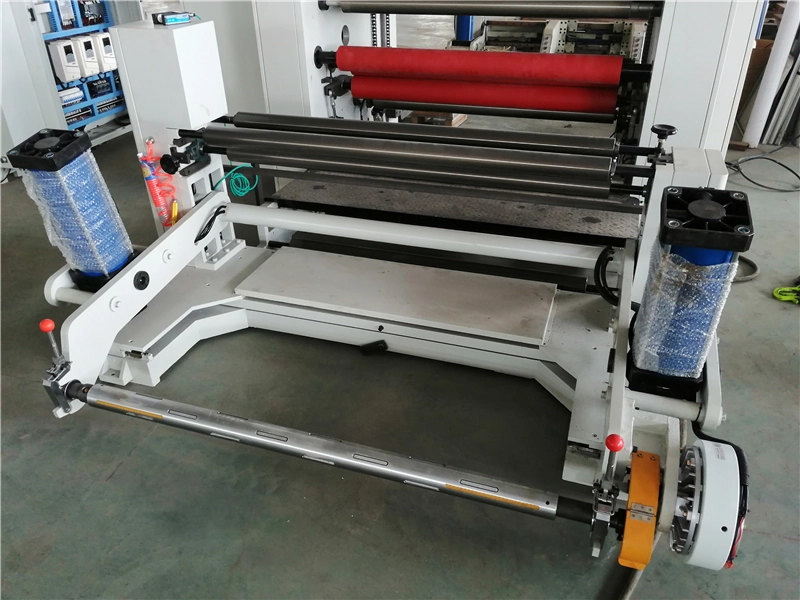

l Adopts pneumaticshaftmaterials loading system with much easy operation and convenience.

l It adopts servo motor for controlling constant-length cutting(precision:±0.2mm)

l It adoptsJapanese PanasonicPLCcontrol,Taiwan Weinview touching panel (screen operation).

l The machine can slit to two sheets and color photo eye(color tracking sensor) for after printing web material.

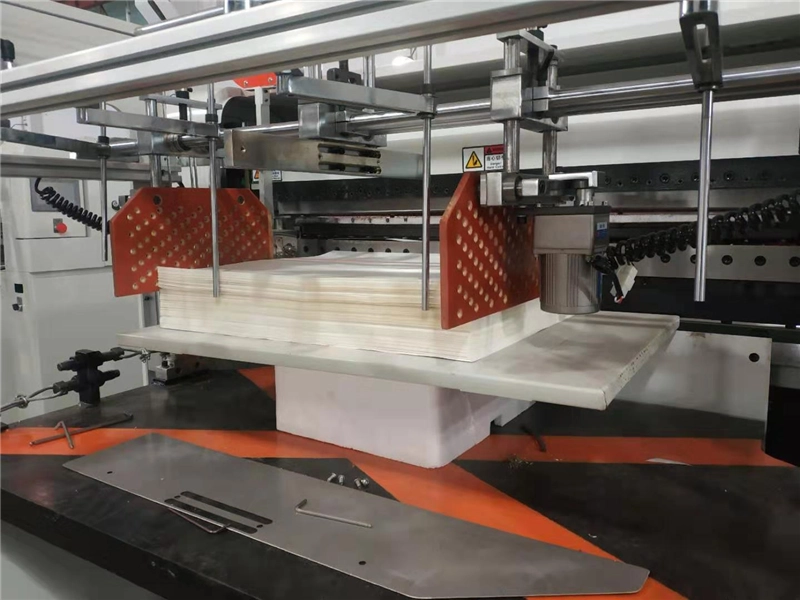

l The machine can automatic to trimming and stacking the finished sheets.


Technical parameter:

Max width mother roll

1400mm

Max diameter mother roll

1400mm

Max mother roll weight

1200KG

Cutting speed

150-180 times/min

Cutting type

Guillotine knife

Cutting length

20-1200mm

Cutting capability

40-450gsm

Precision

±0.2mm

Speed regulation control

Frequency converter

Total Power

11KW

Power input

380V,50HZ,3PH

Dimension

4500*1900*1500

Total weight

3500KG


Drive system:

Cutting Motor

2.2KW

Feeding Motor

1.5KW

Main Motor

4.4KW,Servo motor

Frequency converter

4.4KW,SINEE

Feeding roller

Rubber roller

Transmit roller

Aluminum roller

Transmit way

Synchronous belt

Pressing way

Cylinder

Bearing

Renben

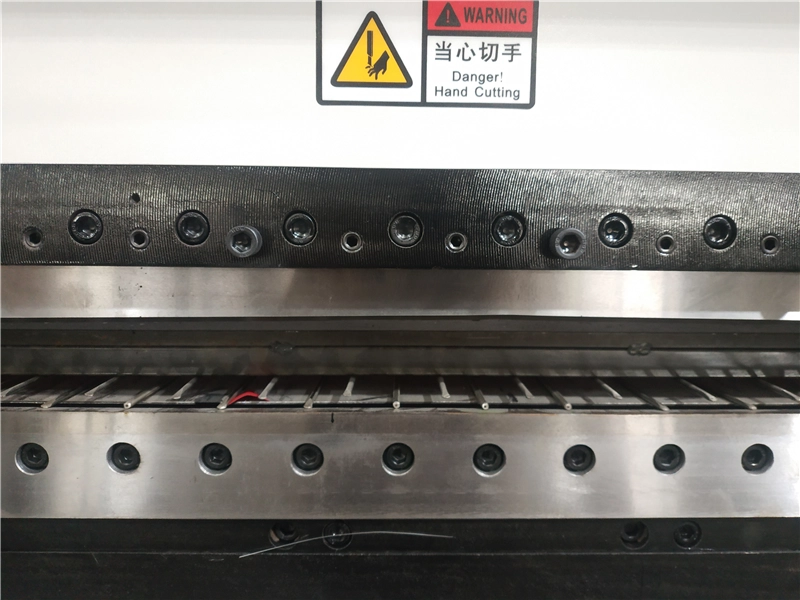

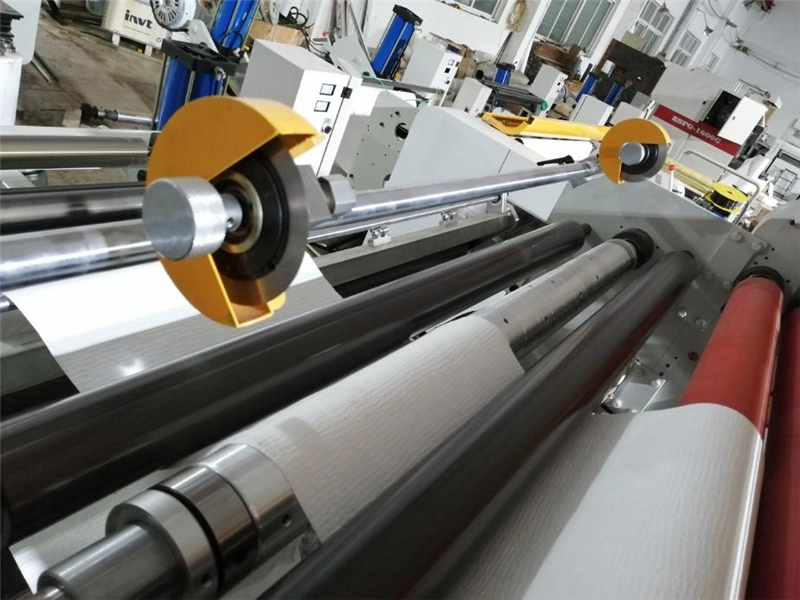

Cutting equipment:

Guillotine knife

2PCS

Blade knife

3PCS

Adjustment way

Freely by manual

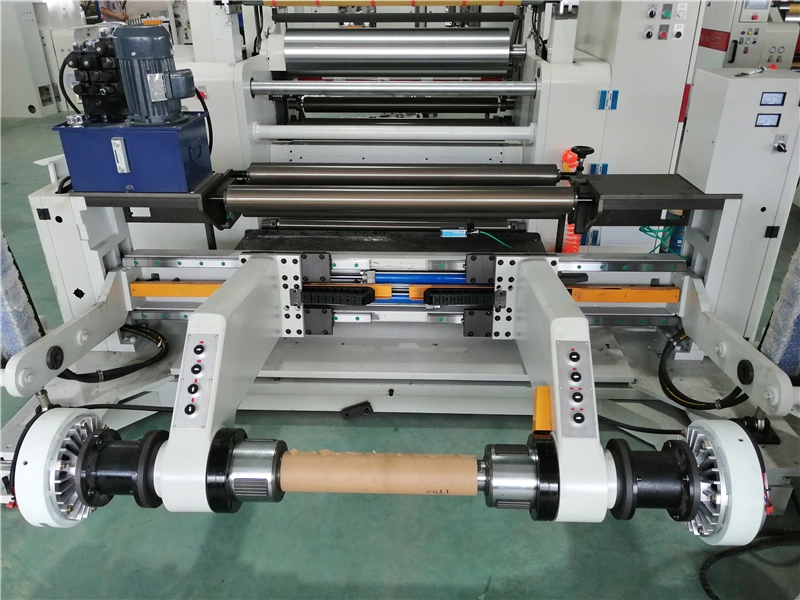

Unwinding equipment:

Unwinding type(optional)

3inch, pneumatic shaft

Lifting up way

Cylinder control

Guide way

Right&Left 150mm


Control system:


PLC

Panasonic,Japan

Touching screen

Weivien,China Taiwan

Tension control

Full automatic

EPC(edge postion correct)

GAOBAO

EPC precision

±0.2mm

EPC sensor

Ultrasonic sensor

Count meter

Full automatic

Automatic stop

Setting in PLC touch screen
