Scope of application:

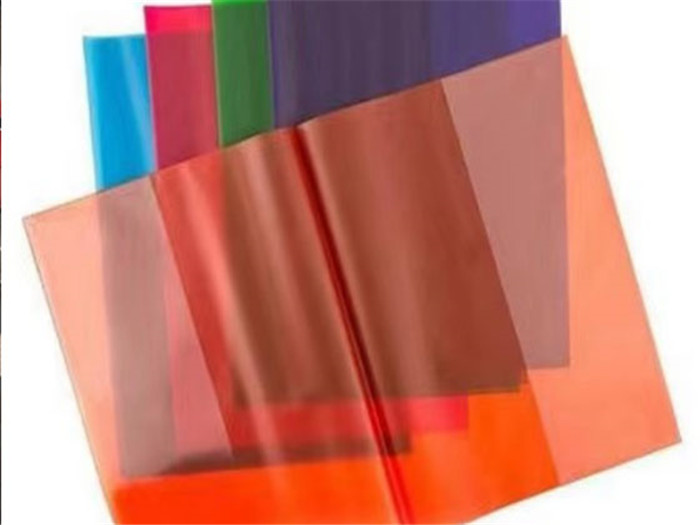

The full-automatic high-frequency welding machine is controlled by computer. It is mainly used for disposable medical bags such as book cover bags, blood transfusion bags, infusion bags and urinary catheterization bags, as well as photo albums, business card books, book covers, chest cards, packaging bags, etc., which contain more than 30% PVC soft glue.
Stacking process: high frequency stacking - hot cutting
2.Main technical parameters
|
Applicable substrate |
PVC soft film |
High frequency parameters |
|
|
Unwinding diameter |
Ф550mm |
High cycle output |
8KW |
|
Discharge width |
≤700mm |
oscillation frequency |
27.12MHZ |
|
Bag length |
70-650mm |
Maximum penetration force |
13KVA |
|
Mechanical speed |
7－30个/分钟 |
Oscillating tube |
3069 |
|
supply voltage |
220V/50hz |
Rectifier tube |
HVP16 |
|
Total power |
4.5KW |
Maximum pressure |
1T |
|
Total weight |
850KG |
Lower electrode plate |
600*800 |
|
|
|
Up and down movement distance |
200mm |
|
|
|
Pressurization mode |
pressure |
