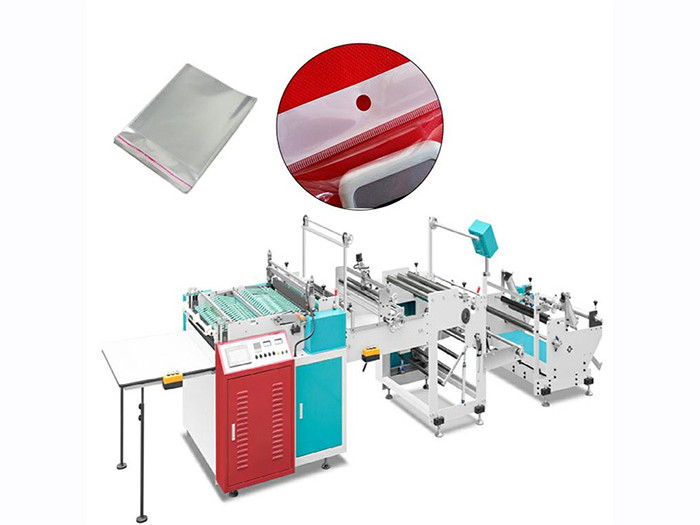

DRQ-multi-functional Heat Cutting Side Sealing Bag Making Machine

Product Application:

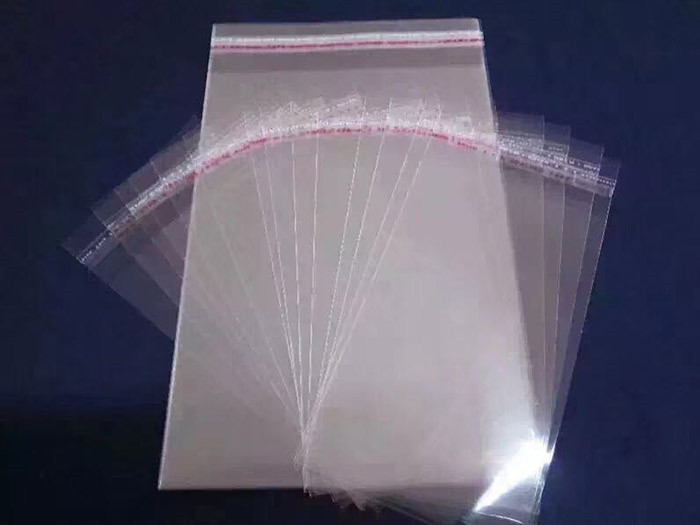

This machine is suitable for heat cutting and bag making of such printed or without printed plastic film as OPP, PP and PE, etc. It’s an ideal quipment for envelope bag, pillowcase bag, garment bag, towel bag and accessory bag.Ideal equipment for making bags of folded film or double-layer materials).

Features:

1. The wholemachine adopt microcomputer control, frequency control andmaterial feeding byservo motor;

2. Arbitrary fixed-length, accurate and stable stepPhotoelectric tracking, stopping automatically when the label is lost.

3. Auto-Sync double adhesive tape processing, automatic punching and automatic stopwhen run out of materials.

4. Heat sealing decorative border, automatic constant temperature, firm and flat sealing.

5.Optional deviation correction feeding rack.

Main technical parameters:

Model

DRQ-500

DRQ-700

DRQ-800

DRQ-1000

制袋长度 Max.Cutting Length

50-650mm

60-650mm

70-650mm

70-650mm

制袋最大宽度 Max.Width of base material

≤500mm

≤700mm

≤800mm

≤1000mm

制袋厚度 Bag making thickness

0.015-0.05MM

0.015-0.05MM

0.015-0.05MM

0.015-0.05MM

制袋速度 Capacity

60-220

PCS/MIN

60-20

PCS/MIN

60-200

PCS/MIN

60-200

PCS/MIN

The widest feeding of film folding machine

≤1150MM

≤1350MM

≤1550MM

≤1950MM

总功率 Total power

4KW

5KW

6K

6KW

机械重量 Mechanical weight (approx.)

1000KG

1100KG

1200KG

1300KG

制袋机械尺寸 Bag making machine size (approximate)

4000×1200

×1900mm

4000×1400

×1900mm

4000×1500

×1900 mm

4000×1500

×1900 mm

If you have any enquiry about quotation or cooperation,please feel free to email us at or use the following enquiry form. Our sales will contact you within 24 hours. Thank you for your interest in our products.
