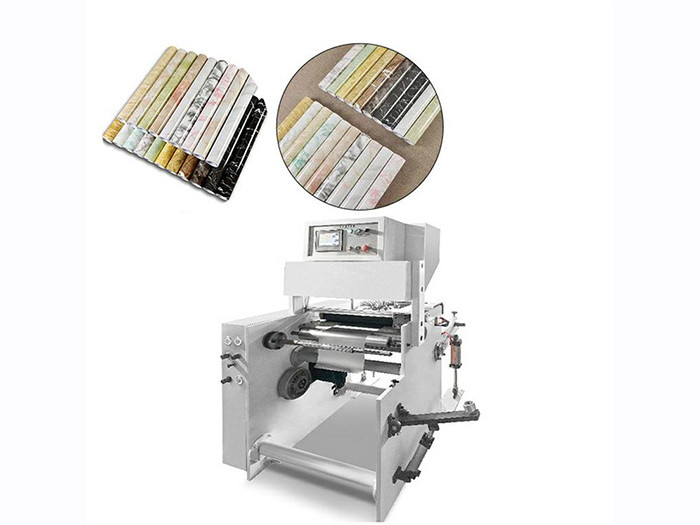

Main features:
Unwinding: Air pressure lifting unwinding rack, integrated unwinding rack, etc.
Winding: Continuous air expansion shaft, computer-controlled automatic inflation and opening (the diameter of winding shaft can be adjusted arbitrarily).
Cut off: Adopt the round-trip automatic partition of rodless cylinder.
Main control: Servo motor feeding in fixed length, saving high precision in high-speed operation, with the functions of high fixed length precision, neat winding, simple operation, beautiful appearance and stable performance. It can also form a production line with the full-automatic shrink packaging machine.
Technical parameters:
|
Model |
FJ-600 |
FJ-800 |
FJ-1000 |
|
Max.width |
600 |
800 |
1000 |
|
Max.diameter of unwind |
600 |
600 |
600 |
|
Max.diameter of rewind |
260 |
260 |
260 |
|
Max. speed |
10-150m/min |
10-150m/min |
10-150m/min |
|
Fixed length accuracy |
+-5mm |
+-5mm |
+-5mm |
|
Total power |
2kw |
2.3kw |
3kw |
|
Machine weight |
1000kg |
1200kg |
1500kg |
|
Overall dimension |
1300x1380x1600mm |
1300x1600x1600mm |
1300x1800x1600mm |
|
Voltage |
220v |
220v |
220v |
|
Paper core specification |
20mm,25mm,38mm |
||
