If you want to buy one film blowing machine,please let me know below information
1. The max film width you want to make?
2. The raw material if it's LDPE,HDPE OR LLDPE?
3. The power supply if 380V or 220V or others?
4. If you need branded parts like panasonic, delta,schneider?
5. If any optional parts you need too, like air compressor and screen changer, surface treater?

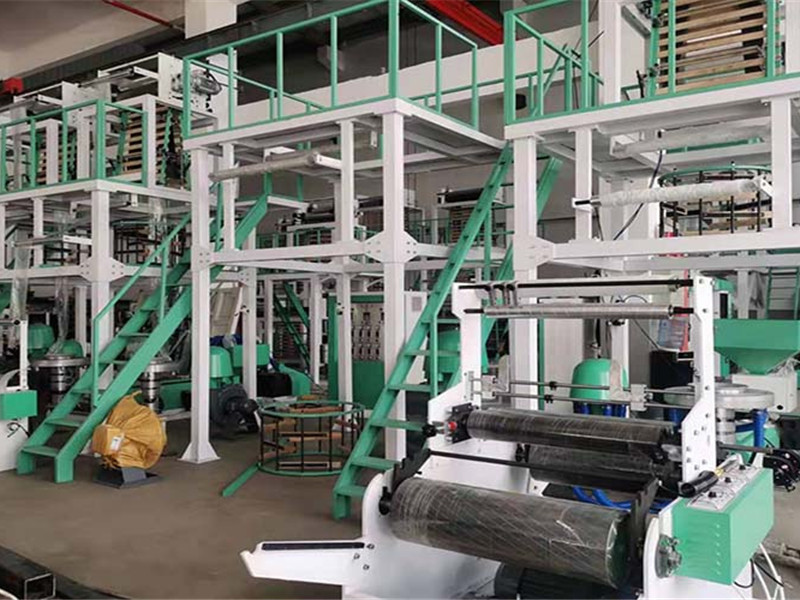

Performance and Characteristics:
This machine can produce ground,shack and package film of LDPE,HDPE,LLDPE.
Extruder barrel and screw are made of high quality alloy steel,nitrided and manufactured by precision machining.
They are provided with very hard surface to resist corrosion and adrasion.
Temperature is regulated automatically,reliably and accurately.
It is adopted with surface friction double station winding device.
Automatic measuring length,simple operation.
Main Technical Variables:
|
型号 |
Model |
FE600 |
FE800 |
FE1000 |
FE1200 |
FE1500 |
|
适用材料 |
Suitable material |
HDPE LDPE LLDPE |
HDPE LDPE LLDPE |
HDPE LDPE LLDPE |
HDPE LDPE LLDPE |
HDPE LDPE LLDPE |
|
最大吹膜宽度 |
Max width of film(mm) |
600 |
800 |
1000 |
1200 |
1500 |
|
薄膜厚度 |
Thickness of film(mm) |
0.008-0.2 |
0.008-0.2 |
0.008-0.2 |
0.008-0.2 |
0.008-0.2 |
|
最大挤出量 |
Max extrusion output(kg) |
35-40 |
45-50 |
55-60 |
60-80 |
60-80 |
|
齿轮箱 |
Gear box |
133 |
146 |
173 |
173 |
180 |
|
螺杆直径 |
Screw diameter(mm) |
φ50 |
φ55 |
φ60 |
φ65 |
Φ70 |
|
螺杆长径比 |
Screw L/D ratio |
28:1 |
28:1 |
28:1 |
28:1 |
28:1 |
|
主电机功率 |
Main motor power(kw) |
11 |
15kw |
18.5 |
22 |
30 |
|
模口 |
Die size(mm) |
φ50/φ80 |
φ80/φ100 |
φ100/φ150 |
φ150/φ200 |
Φ250 |
|
牵引辊宽 |
Roller width(mm) |
700 |
900 |
1100 |
1300 |
1600 |
|
收卷辊宽 |
Roller width(mm) |
700 |
900 |
1100 |
1300 |
1600 |
|
电源 |
Supply voltage |
380V/ 50Hz |
380V/ 50Hz |
380V/ 50Hz |
380V/ 50Hz |
380V/ 50Hz |
|
机器重量 |
Machine weight(kg) |
2000 |
2500 |
3000 |
3200 |
3800 |
|
外形尺寸 |
Dimensions(mm) |
4500×2500×4200 |
4500×2800×4500 |
5000×3200×4800 |
5200×3500×5200 |
5500×3800×5800 |
