Properties and uses：

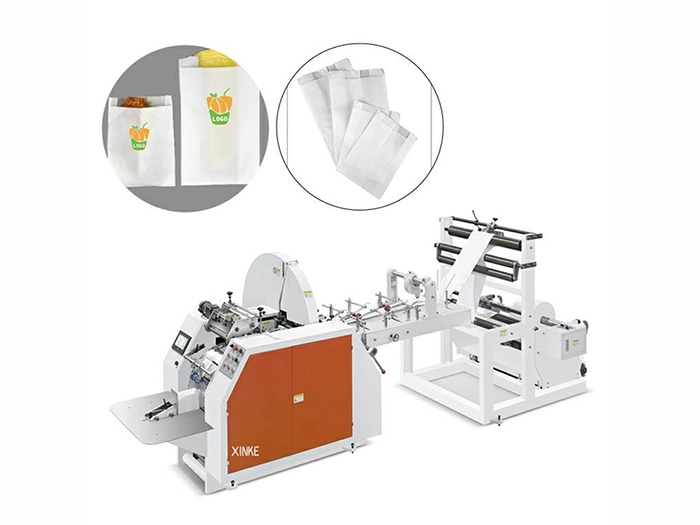

This machine is used for primary color paper or printed web paper. It is used to make paper bags with pointed bottom at one time. The machine can be used in various paper bags with high speed and efficiency. It is an ideal equipment for paper bag production. This machine is composed of drum feeding (pneumatic feeding, automatic deviation correction, tension adjustment), side gluing,printing paper electric eye tracking, base paper into cylinder, fixed-length drawing cutting, bag bottom indentation opening, bag bottom gluing forming, bag out finishing and so on. The whole machine is controlled centrally by PLC touch screen and servo motor controls the length of paper bag.
Machine parameters:
|
Model |
JD400 |
|
· 纸袋长度Paper bag length |
· 120-420mm(L) |
|
· 纸袋宽度Paper bag width |
· 80-240mm(W) |
|
· 纸袋厚度Paper thickness |
· 40-80g/㎡ |
|
· 机械速度Machine Speed |
· 60-400pcs/min |
|
· 纸卷宽度Paper roll width |
· 260-720mm |
|
· 插边宽度Insert Paper Edge |
· 20-100mm(2M) |
|
· 整机功率Machine power |
· 6kw |
|
· 整机重量Machine weight |
· 1450kg |
|
· 整机尺寸Machine size |
· 4400x1700x1600mm |

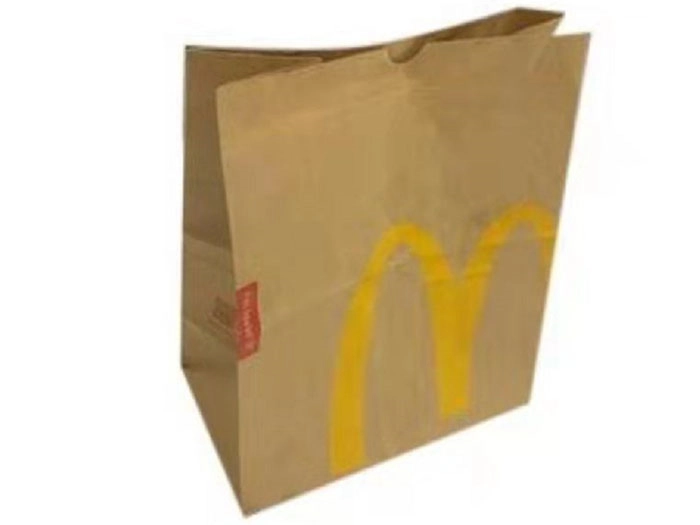

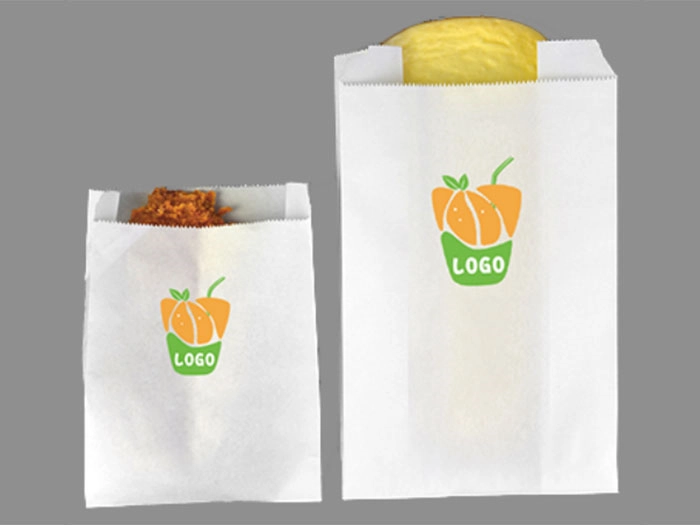

· This isour new design food paper bag making machine, which used for KFC, Mcdonald's like chips, bakery and so on.
· Automatic constant tension control for unwinding,Servo Motorsystem, motor for material feeding with inverter.
· Main motor with inverter
· The machine can be stop automatically once out of material.
· Wheel type gusset unit with motor driving.
· Closed type automatic glue application and forming system.
Side lay working table, easy operation.
