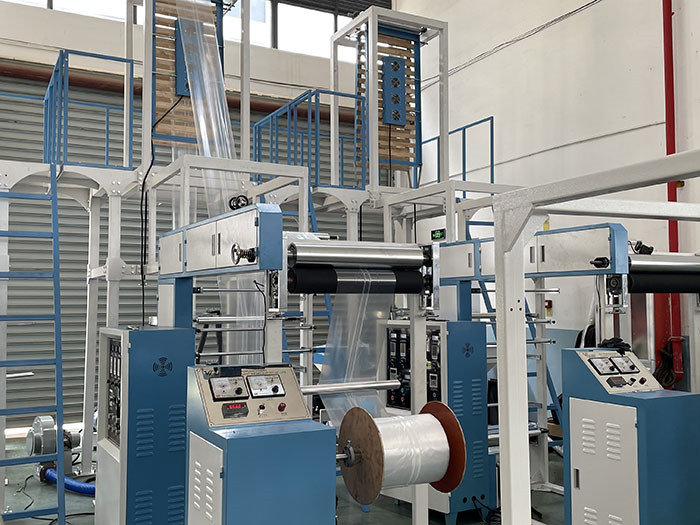

The machine is innovatively designed on the basis of the film blowing machine. The bag mouth is directly equipped with a concave convex button type self sealing chain, and the bag mouth can be self sealed at will. The host adopts variable frequency speed regulation, photoelectric control, automatic air supply, high technology content and strong applicability.
The raw material is low-density polyethylene LDPE, which is suitable for the packaging of food, medicinal materials, documents, industrial products and plastic products for export packaging, as well as the packaging of fruits, food, clothing, textiles and civil industrial products.
Configure:
（1） Host part:
1. Main motor: 5.5kW level 4 380V 50Hz Shanghai
2. Host frequency conversion: 5.5kW Yi Neng
3. Belt pulley 3 slots 2 pcs
4. Gear box 133 national standard Changzhou chengchi
5. Screw 50
6. Length diameter ratio of screw: 31:1 Zhoushan
7. Screw material: 38CrMoAl
8. 50kg hopper coating and plastic spraying
9. Output: 25kg/h
10. Coating and plastic spraying treatment for channel steel of main engine base
11. Shell color can be painted and sprayed with plastic
12. The surface of tee 230 is plated with 30Cr
13. Customized according to customer products
14. 2 downwind rings
15. Vertical blowing cooling 1 set
16. Cooling fan 1 KW low noise
17. 1 automatic make-up fan
18. 6 thermostats in Shanghai
19. Heating power 17kw
20. 6 ammeters
21. One voltmeter
22. 6 solid state relays
（2） Frame traction part
1. Frame structure: 80x80 square steel coating and plastic spraying
2. Upper traction herringbone plate material: wood strip type
3. Herringbone plate 1.4m
4. 1 upper traction roller
5. Traction motor 1.5kw6 Shanghai
6. Traction frequency conversion 1.5KW easy energy
7. 3 pairs of 6 lower traction rollers
8. Transmission mode: sprocket transmission
9. A pair of cutting knives
（3） Winding part
1. Winding motor: torque motor 6nm Shanghai
2. Torque controller: 20A Shantou, Guangdong
3. Rolling iron plate 10mm
4. Winding form: central winding
Overall dimension of the whole machine: 6x2.5x4.5m
Machine options: red line machine, reinforcement injection machine
