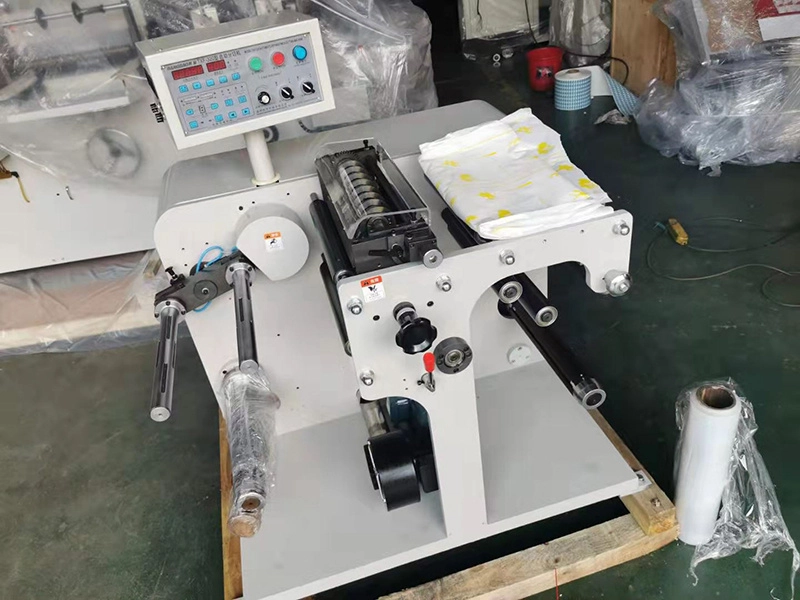

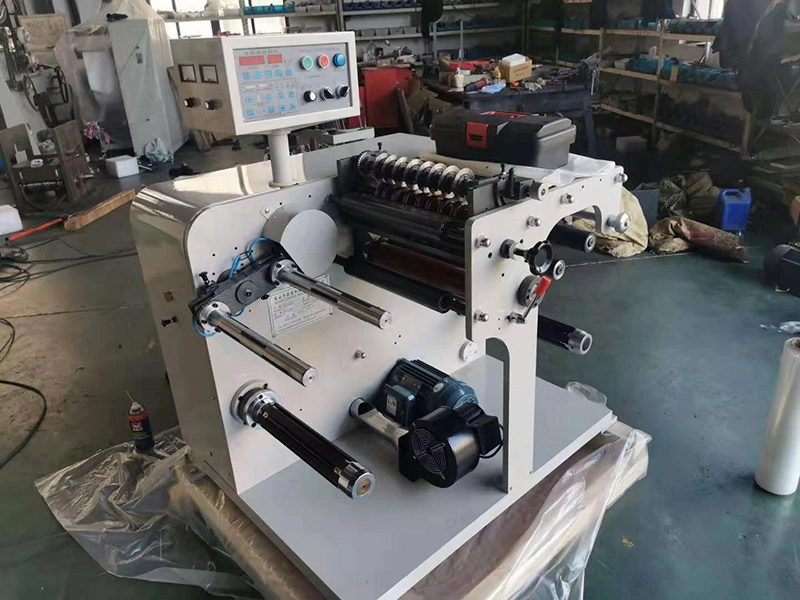

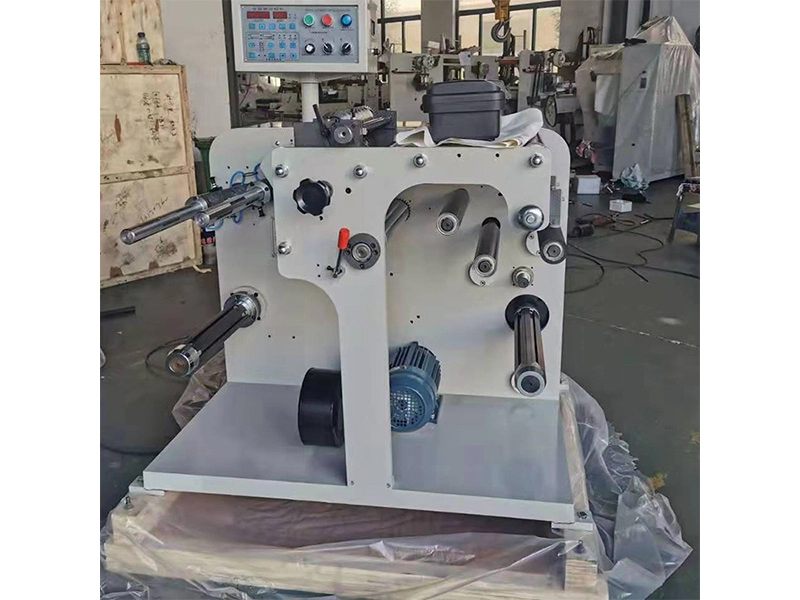

Configuration of 320 automatic Slitter
Model 320 slitting machine, the unwinding and winding shafts are air expansion shafts, and the expansion force is adjusted by magnetic powder. Discharge with automatic deviation correction function, photoelectric switch adopts Taiwan Futai. And it is equipped with automatic meter counting or counting function, set the length or quantity can stop automatically. The main engine adopts frequency conversion speed regulation, the frequency converter adopts Schneider of France, and the key switch adopts Schneider of France.
Main technical parameters of 320 automatic Slitter
Cutting speed 150m / min
Maximum drum width 520mm
Maximum unwinding diameter 500mm
Maximum winding diameter 480mm
Power supply voltage AC220 V±10%
Power 1.5kw
Overall dimension 1.1 (L) x 1.3 (W) x 1.3 (H) (m)
The total weight is about 1000kg
1、Inverter: Schneider, France 1
2、Button switch: Schneider, France
3、Motor: 1 made in China
4、Deviation correction photoelectric switch: ks-c2g 2 pieces
5、Meter: one made in China
