Thermal Paper Slitting Machine

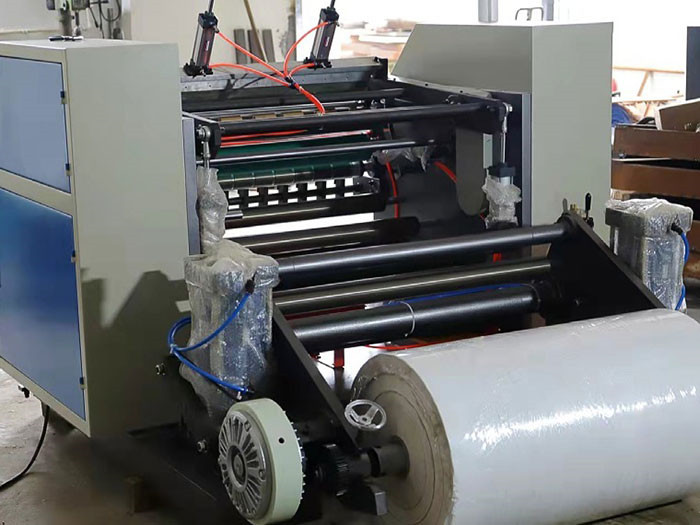

Jb900fq pneumatic roll cash register paper slitting machine, automatic paper loading and unloading, automatic magnetic powder tension control, touch screen operation data setting and PLC program control, frequency conversion speed regulation and full pneumatic operation, with compact structure and adjustable paper roll tightness. It has the advantages of accurate slitting, reliable performance and simple operation. It is suitable for slitting cash register paper, fax paper and tickets. The number of meters to be slitted only needs to be set directly on the touch screen.

一、Technical features:

Fast speed and neat slitting end face

Brand automatic tension system control, 10kg magnetic powder brake, stable operation

Automatic marking device

Automatic meter counting, with coding counter, high meter accuracy

Imported Siemens complete set of electrical control system

Inflatable shaft and flattening roller to ensure no paper biting

Waste air discharge

Stepless frequency conversion speed regulation, convenient and flexible

二、Technical parameters:

Note: due to different reel specifications, the winding diameter is different. Special specification machine, 110mm for single layer, 55mm for double layer and 45mm for three layers

三、Jb900fq single layer Slitter configuration:

1. Automatic tension control system, 10kg magnetic powder brake

2. Variable frequency speed regulation of frequency converter

3. Siemens PLC

4. German Siemens brand touch screen

5. Siemens electrical control system

6. Yade road system

7. Automatic paper loading and unloading device

8. Inflatable shaft, arc roll

9. Automatic marking device

10. Automatic meter counting

11. Air supply and waste discharge device

12. 16 tools are randomly configured

13. Randomly configured slitting size: 56mm

14. Random configuration of winding mandrelф15mm、 ф2 16mm each

15. Use standard configuration such as tools
