YT 3-320 3 color 2 color Mini Label Flexo Printing Machine

Feature:

1. From the discharge to the receipt of the short distance.

2. The ceramic stick is equipped with a scraper, which is printed and moist, and has a clear color.

3. Repeatedly printing the circumference of 190.5-635MM, filling the blank of the cascading flexographic printing machine, the slanting trademark printing machine, the petal printing machine and the printing length.

4. The use of gear color to solve the 360-degree coloring device gap, assembly, wear, etc., affecting the color accuracy and printing instability.

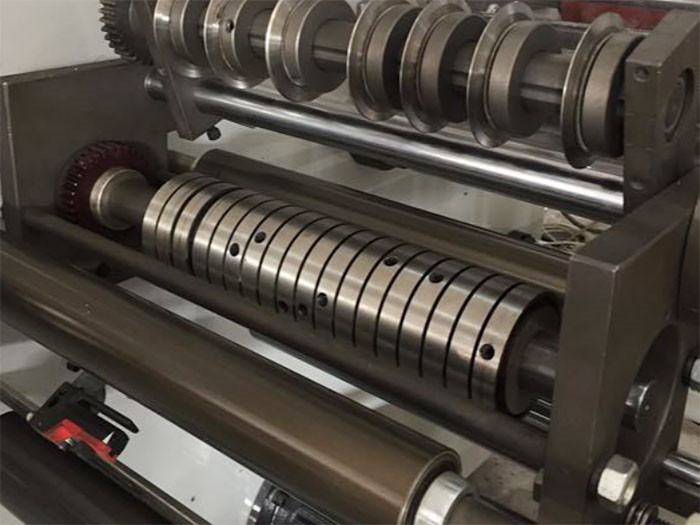

5. From left to right: coil feeding, printing, LDE curing,  film cutting, laminating,  slitting，winding a coherent completion .

6. Water-based ink (UV ink) printing, pollution-free, environmentally friendly, printing speed varies according to the network cable, the speed is also different, the fastest speed of printing labels is 90 meters per minute.

7. Printing bills, labels, cardboard, high-grade stickers, clothing tags, etc.

8. Printing materials: paper 20~250g/m2 self-adhesive soft coil and other materials.

9. Process: 1 discharging, 2 automatic constant tension, 3 scraper, 4 printing unit, 5 traction, 6 automatic constant tension, 7 center receiving

Technical parameters:

The machine configuration：

1. Unwinding device：

1) Single arm center roll up

2) Maximum diameter of unwinding: Φ500 mm

3) Inflatable shaft specification: 3”

4) Number of inflation shafts: 1

5)  Analog Correction System: 1 set

2. Printing unit

1) Drive mode: geared motor drive, synchronous belt drive.

2) Printing plate shaft：

（1）Vertical color: manual

（2）Horizontal color: manual

3) Overall composition: plate roll, scraper, ink tray, anilox roller.

4）Scraper: It adopts one-way scraper. The material of the scraper is made of high-strength aluminum alloy profile, which is convenient and quick to load, unload and clean.

4. Drying device：

   1) LED curing

5．Winding device

1)  Winding method: One-arm center curl

2)  Paper core installation method: Expansion shaft expansion 1

3)  Inflatable shaft specification: 3”

4)  Tension control: Fully automatic tension control

5)  Winding tension range: 1-5KG/full width

6)  Single winding diameter: Maximum Φ500mm.

Supporting facilities (users are responsible for their own)

1. Power supply: 3-phase *380V*50HZ, three-phase west line system

2. Air compressor: 1KW (1 set)

Electrical list:
